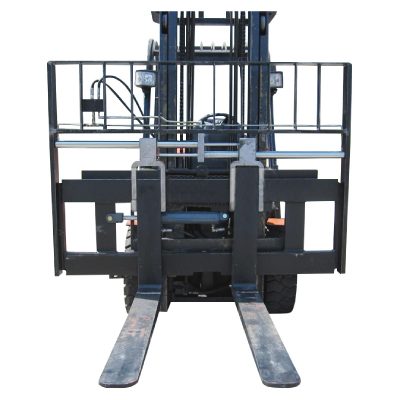

Gaffeltruckens monteringsgaffel med sidoskift

Fork positioner adjusts the distance between forks through the hydraulic drive, reduces the labor intensity and improves efficiency, suitable for different specification tray handling occasion.

Kapacitet @ Load Center (Kg @ mm)	Katalog	Monteringsklass	Lateral Range (mm)	Carriage Width (A)(mm)	Vikt (Kg)	Effective Thickness (ET)mm)	Öppningsområde (Mm)	Vertical Center of Gravity (CGV) (mm)	Horisontellt tyngdpunkt (CGH) (mm)
2500@500	SLC-A002FP	2	±100	1040	115	75	45-960	255	35
2500@500	SLC-A003FP	2	±100	1100	122	75	45-1020	255	35
4500@500	SLC-B002FP	3	±100	1100	140	84	50-1000	270	40
4500@500	SLC-B003FP	3	±100	1150	148	84	50-1050	270	40
4500@500	SLC-B004FP	3	±100	1200	155	84	50-1100	270	40
4500@500	SLC-B005FP	3	±100	1380	175	84	50-1280	270	40
4500@500	SLC-B006FP	3	±100	1430	186	84	50-1330	270	40
6800@600	SLC-C005FP	4	±150	1535	350	98	50-1420	382	55
6800@600	SLC-C006FP	4	±150	1710	382	98	50-1690	382	55
6800@600	SLC-C007FP	4	±150	1845	410	98	50-1720	382	55

Note:1)Please get the actual comprehensive carrying capacity of forklift/attachment from the forklift factory

2) Requires a forklift to increase the additional 2 sets of oil-way.

snabba detaljer

---

Ursprungsplats: Fujian, Kina (fastlandet)
Varumärke: HUAMAI
Model Number:SLC-A002FP
Product name: fork positioner
Load capacity: 2500 kg
Monteringsklass: 2
Carriage Width: 1100 mm
Opening Range: 80-1100 mm
Side shift distance: ±100 mm
Effective Thickness: 75 mm

---



Lägga till sidoförskjutning till gaffeltruck, Klass 3-gaffelpositioner
